VMSH

loader Für Kompaktlader
loader Für kleine Radlader
loader Für Teleskoplader
loader Für Traktor-Frontlader
loader Für große Radlader
Max Druck:
200 Bar
Anhängung:
Geschraubt

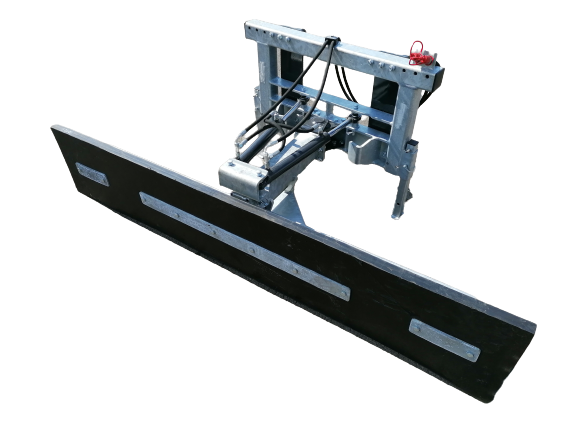

Gummischieber - hydraulisch verstellbar

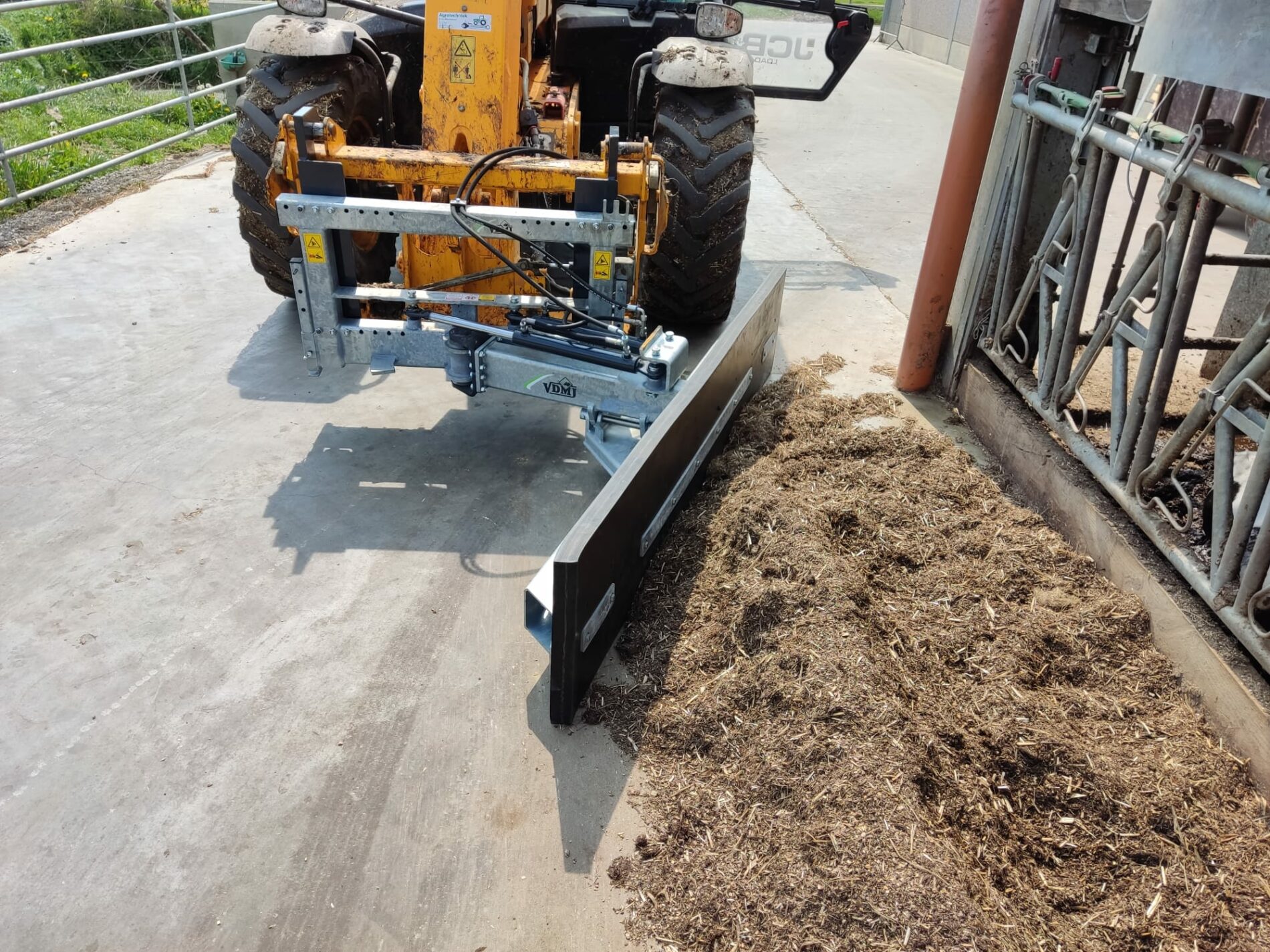

This VDMJ rubber scraper is classically used for pushing feed into the feeding trough. Also for scraping mud, dirt, snow, wood chippings, recycling products, etc. This version is adjustable up to 70° and is always galvanized for a longer life.

In addition, the slide is equipped with a pendulum system, which ensures that the rubber maintains better contact with an uneven surface and thus delivers a cleaner result.



Standard

  • Galvanized
  • Pendulum rubber to mounting frame
  • Adjustable up to 70°
  • Rubber dimensions 400×40 and 500×50
VMSH – 1800 VMSH – 2200 VMSH – 2500 VMSH – 2500V VMSH – 2800V VMSH – 3200V
Loader Up to 2 ton Up to 2 ton Up to 2 ton Up to 6 ton Up to 6 ton Up to 6 ton
Working width in straight position /m 1,80 2,20 2,50 2,50 2,80 3,20
Rubber height /mm 400 400 400 500 500 500
Price (excl. VAT) Auf Anfrage Auf Anfrage Auf Anfrage Auf Anfrage Auf Anfrage Auf Anfrage

Optionen

Non-return valve (for loaders with open hydraulic centre position)
Adjustable edges
