STKZ

loader Für kleine Radlader
loader Für Teleskoplader
loader Für Traktor-Frontlader
loader Für große Radlader
Max Druck:
180 Bar
Geeignet für:
Stroh , Heu, Heulage
Anhängung:
Wahlweise geschweißt oder geschraubt

Strohgabel mit klappbaren Zinken

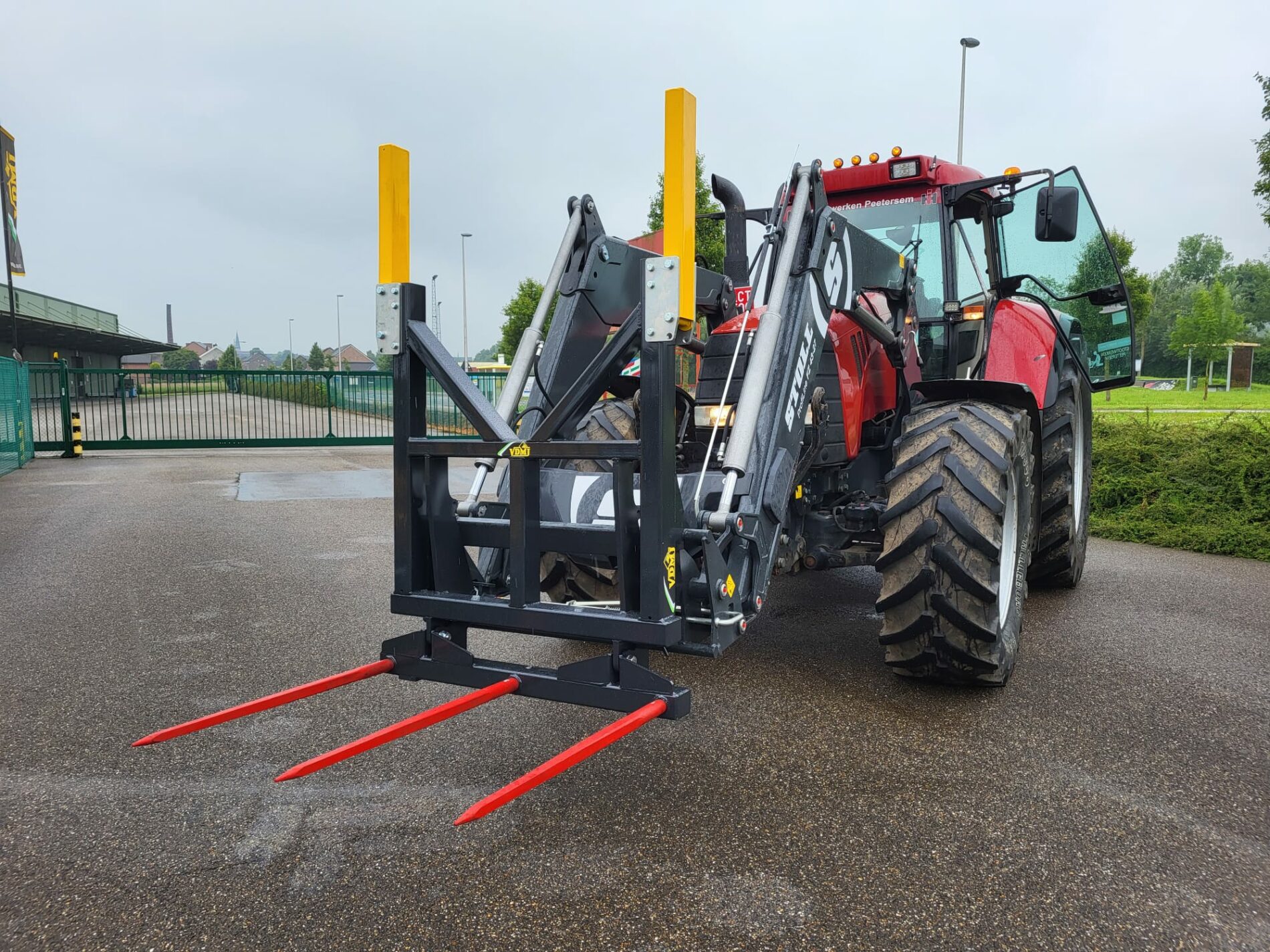

The STKZ is an extremely robust straw fork with foldable tines, typically used on heavy articulated loaders, front loaders, bulldozers, and telehandlers.
The outer tines of the straw frame are spaced 1.10 m center-to-center.

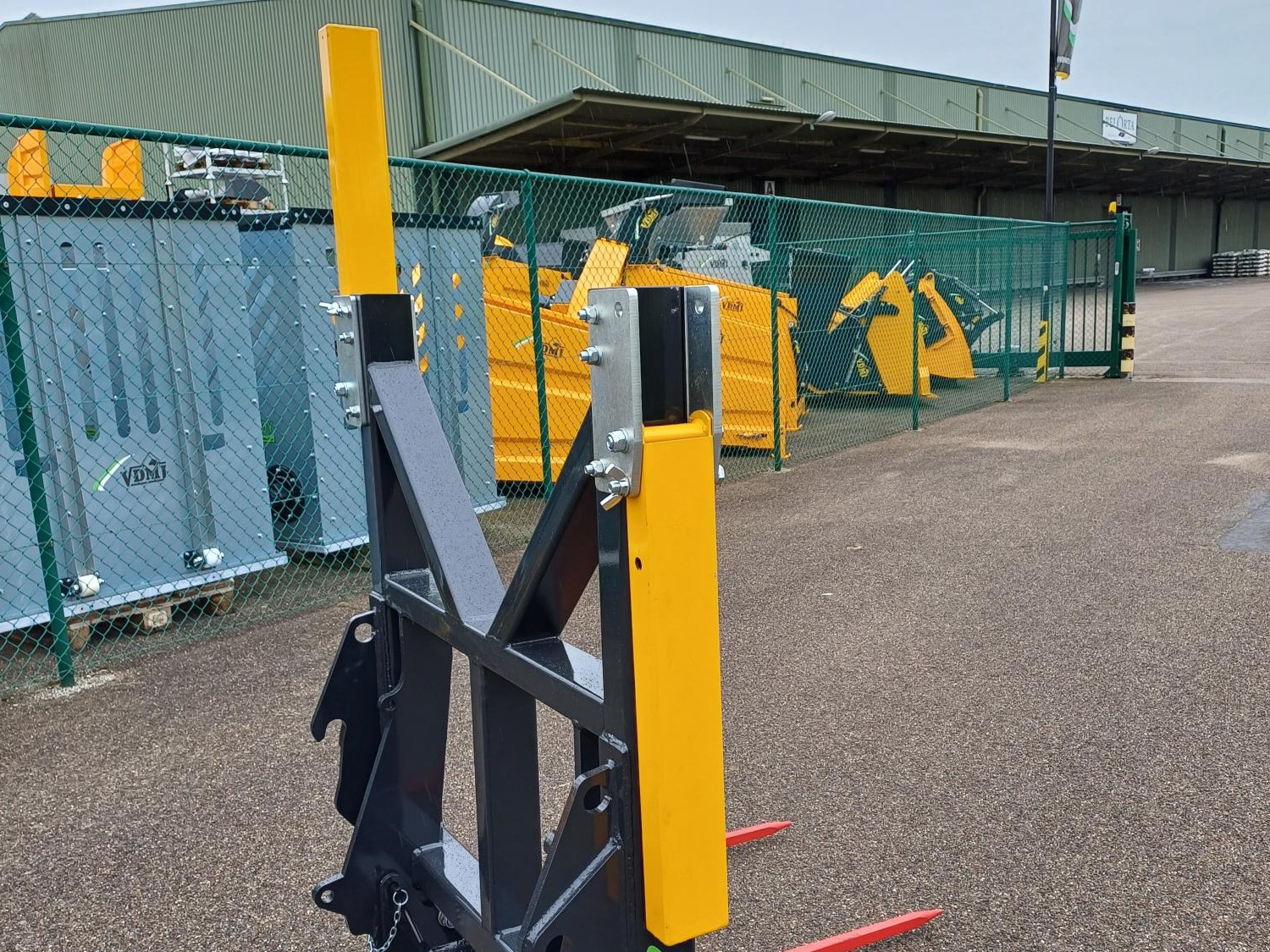

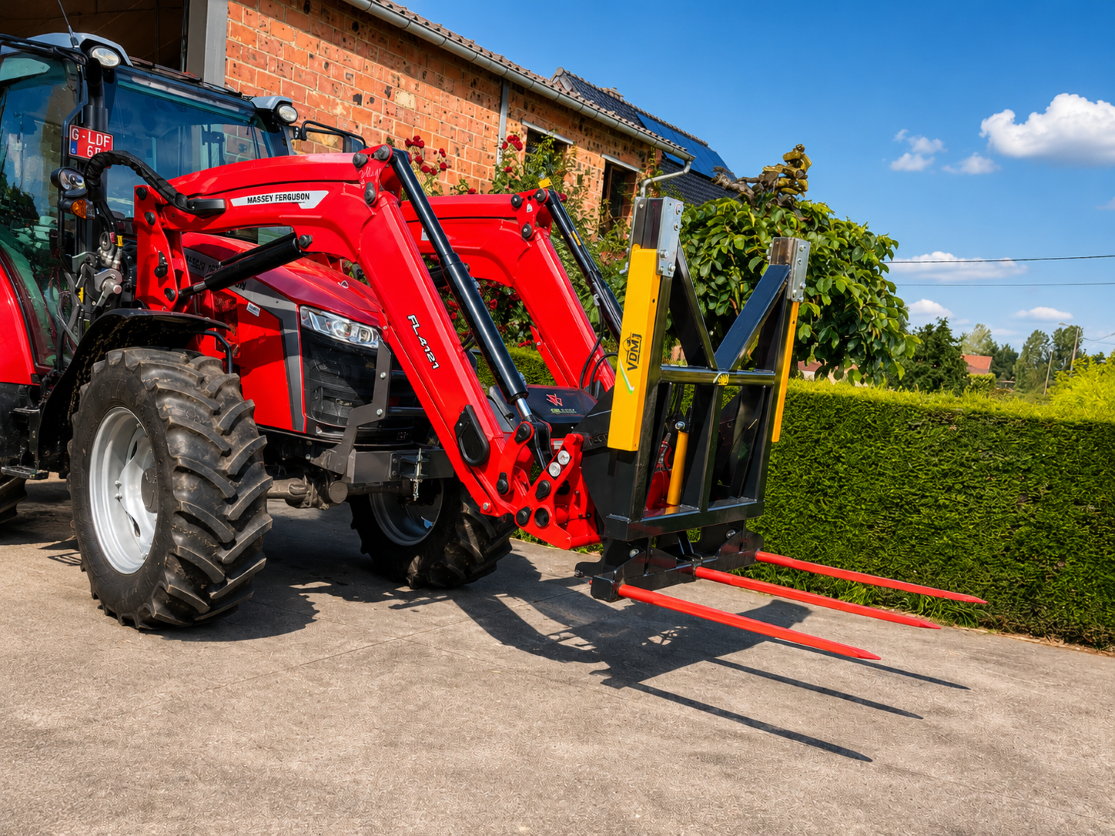

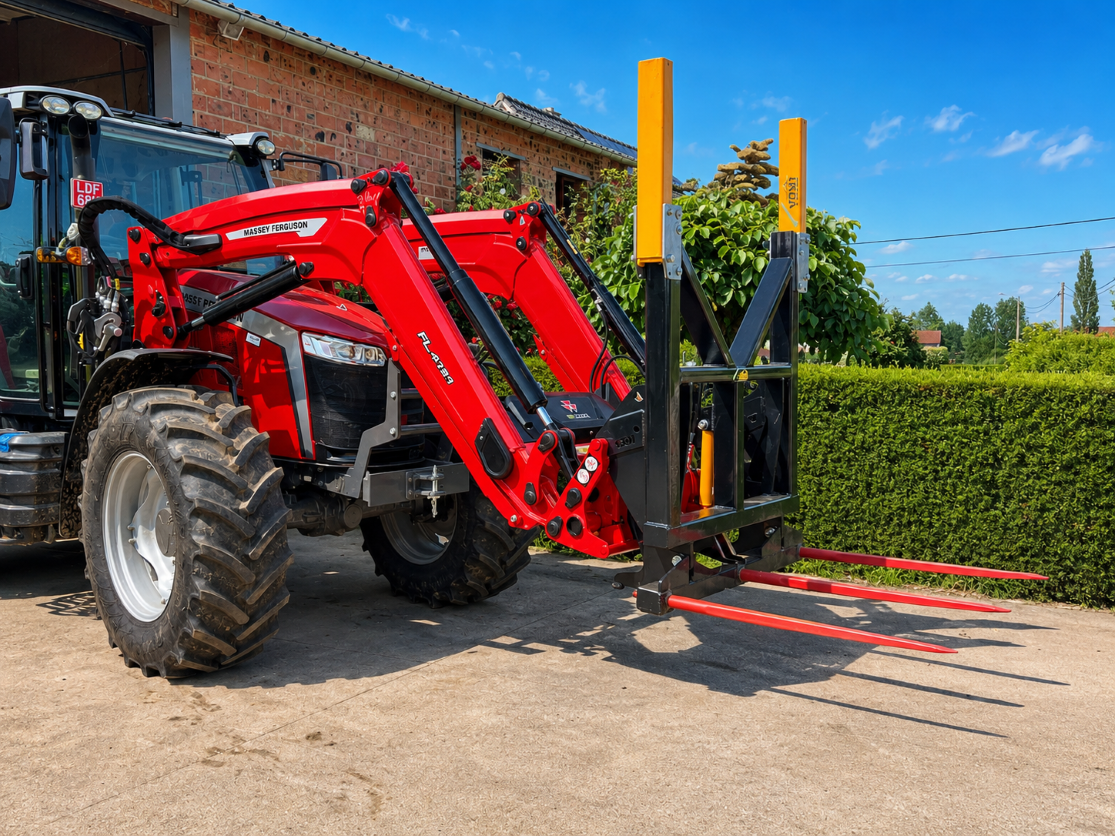

Optionally, the upper part of the frame consists of two foldable box sections. These can be set in a raised position or completely folded away – ideal when stacking under a ceiling or in low spaces.

Standard

STKZ Euro STKZ
Number of tines 3 3
Tine lenght /m 1,10 1,10
Tine-end M28 M28
Tinediameter /mm 44 44
Distance c/c outside tines /m 1,10 1,10
Total width /m 1,20 1,20
Height of the frame /m 1,35 1,35
Height of the frame with option extensions /m 2,05 2,05
Number of bales with height 70 cm 3 3
Number of bales with height 70 cm with option extensions 4 4
Number of bales with height 90 cm 2 2
Number of bales with height 90 cm with option extensions 3 3
Attachment Euro attachment including Excluding attachment
Price (excl. VAT) Auf Anfrage Auf Anfrage



Optionen

Extensions

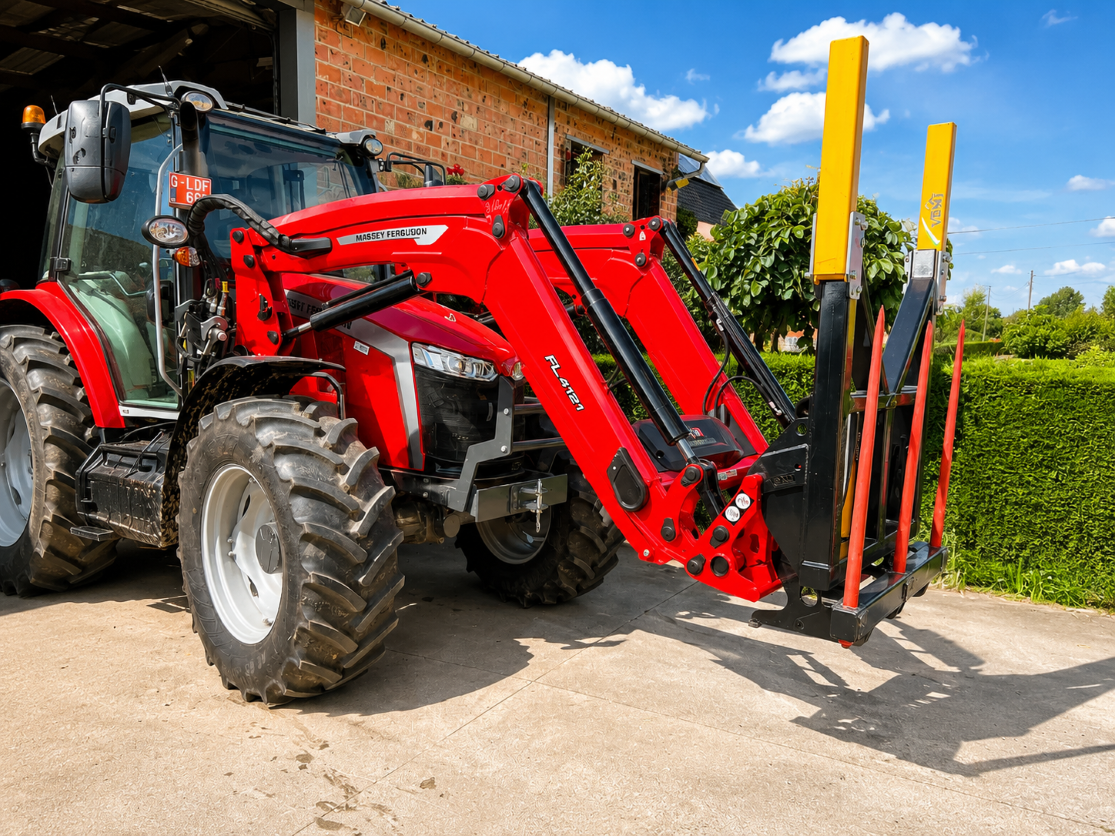

Tines hydraulic foldable
