EV-4030

loader Für kleine Radlader
loader Für Teleskoplader
loader Für Traktor-Frontlader
Min Ölfluss:
30 L/Min
Max Ölfluss:
75 L/Min
Max Druck:
210 Bar
Geeignet für:
Rüben, Kartoffeln, Mais, Kurzes Gras, Gülle Feststoffe, Gemischtes Futter, Presspülpel
Anhängung:
Geschweißt

Schneckenschaufel für Kurzgras, Pressschnitzel, Mais, Konzentrate, Rüben, ... -> 1 Seitenausgang

With a traditional auger bucket it is not possible to feed grass. However, the EV-4030 is no ordinary auger bucket. This machine has a large 400 mm outlet pipe with a 300 mm auger. Therefore, it is possible to feed short grass (max. 8cm) with this machine. Actually, this feeder is a real all-rounder. Maize, concentrated feed, short grass, beets, potatoes, … is no problem at all for the EV-4030.

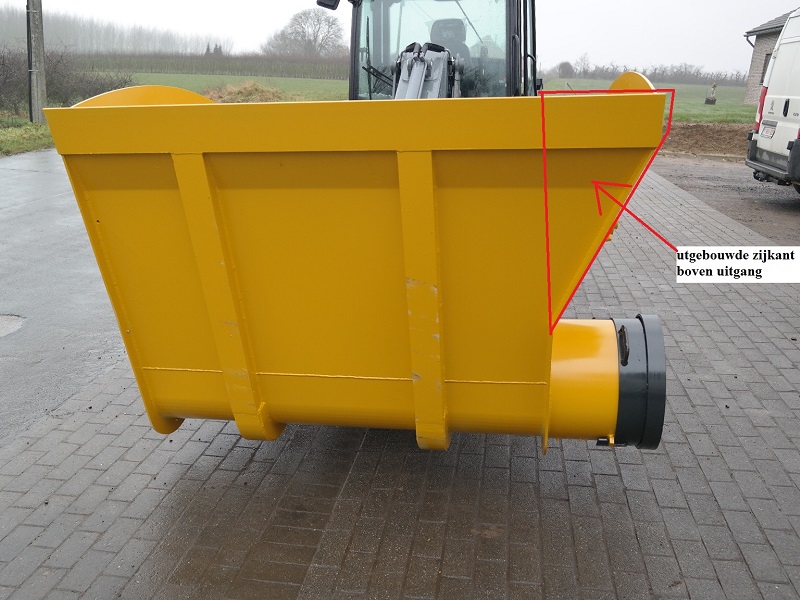

As standard, the machine has straight sides. The exit tube will stick out +/- 25cm. If, for example, a trench silo has to be shovelled, the option ‘extended side’ is recommended.

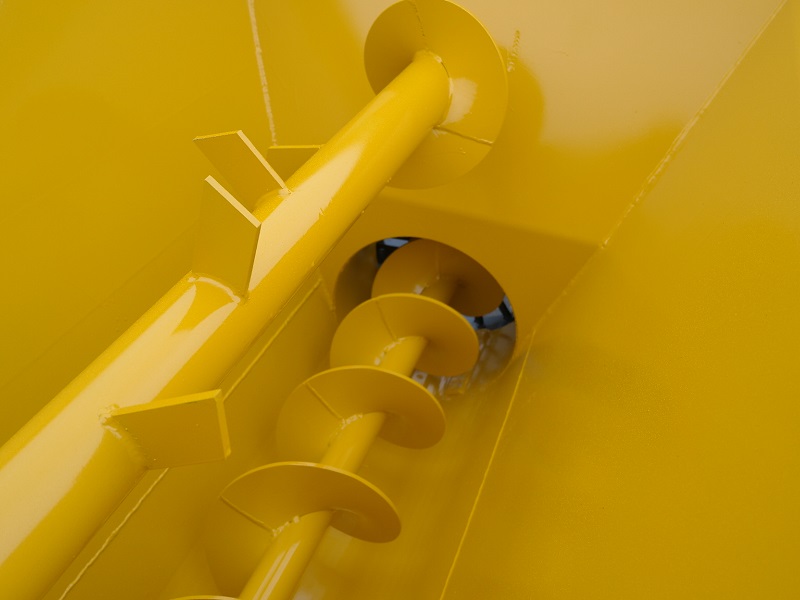

To prevent bridging, the machine is fitted with an extra stirring auger as standard.



Standard

  • Distribution of short grass (max. 8cm), maize, concentrates, …
  • Chopping of beets and potatoes = option
  • 1 Auger Ø300
  • Driven by hydraulic motor and single chain 1″ reinforced on hardened sprockets
  • Plate thickness 6 mm
  • Exit left OR right
  • Stirring auger prevents bridging above the distribution auger
  • Extended side for easy scooping next to a wall (scooping width will be equal to total width)
EV-4030 / 1500 EV-4030 / 1700 EV-4030 / 1900 EV-4030 / 2100 EV-4030 / 2300 EV-4030 / 2500
Total width /m 1,50 1,70 1,90 2,10 2,30 2,50
Capacity /m³ 1,75 2,00 2,25 2,50 2,75 3,00
Wheight /kg 575 700 900 1 100 1 200 1 400
Price (excl. VAT) Auf Anfrage Auf Anfrage Auf Anfrage Auf Anfrage Auf Anfrage € 9 500

Optionen

Extended side for easy scooping next to a wall (scooping width will be equal to total width)
Mechanical door closure on exit
Hydraulical door closure on exit
Beet- or potato blade - complete
Beet- or potato blade - supplied loose, without counter blade
2-cylinder-clamp
