DTGK

loader Für Teleskoplader
loader Für Traktor-Frontlift
loader Für Traktor-Hecklift
loader Für große Radlader
Min Ölfluss:
35 L/Min
Max Ölfluss:
75 L/Min
Max Druck:
210 Bar
Geeignet für:
Mais, Kurzes Gras, Gülle Feststoffe, Gemischtes Futter, Presspülpel
Anhängung:
Geschraubt

Bodenkettenschaufel für Kurzgras, Pressschnitzel, Mais, Konzentrate, Rüben, ... -> 1 oder 2 Seiten Ausgang

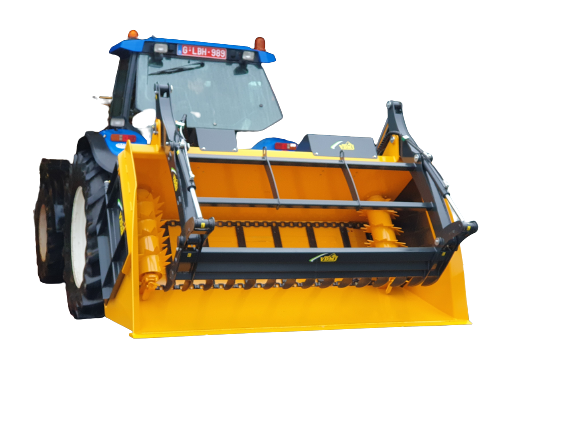

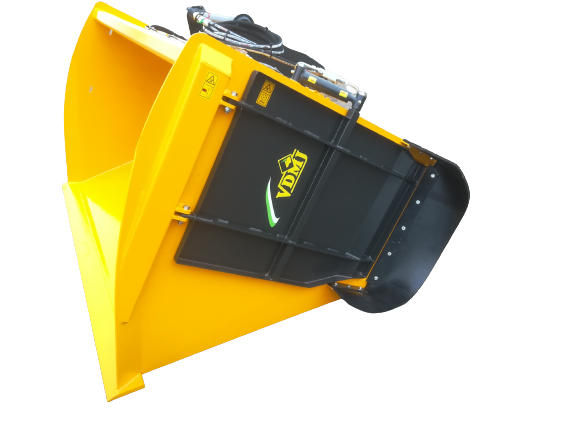

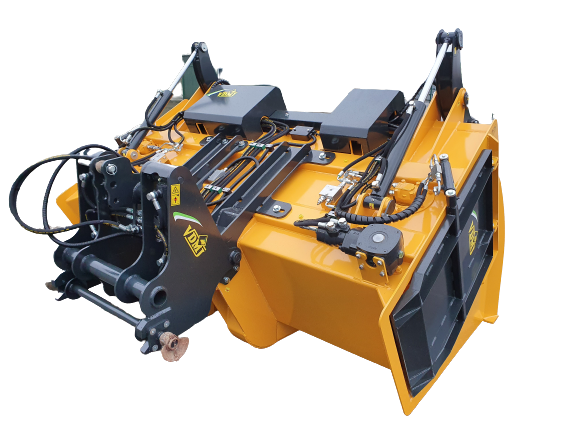

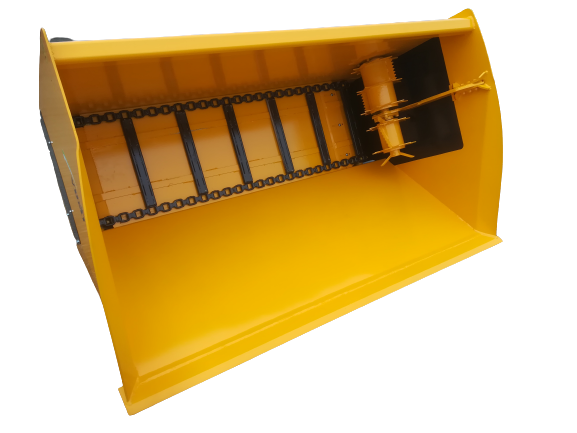

The DTGK feed bucket is the larger version of the DTGXK. The forage is rotated to the side of the bucket via a robust floor chain. Here, a distribution roller takes the feed and distributes it to the outside via the door opening. Optionally, the bucket can have a door on both sides so that the feed can be distributed to the left or right.

At the customer’s request, the bucket can be equipped with a claw on top of the bucket to pull the feed into the bucket.

Standard

  • Distribution of short grass and maize
  • Distribution with floor chain 80/12
  • Distribution roller in door opening, separately driven by heavy-duty hydraulic motor, independent of floor chain
  • Hydraulic door on 1 side (2 sides is an option)
  • Electro-hydraulic control
  • Free return is recommended but not necessary
DTGK 2000 DTGK 2200 DTGK 2400 DTGK 2600
Total width /m 2,00 2,20 2,40 2,60
Volume /m³ 2,00 2,24 2,46 2,67
Weight /kg 940 1035 1125 1210
Possible 3 point linkage for tractor? No Yes Yes Yes
Price (excl. VAT) Auf Anfrage Auf Anfrage Auf Anfrage Auf Anfrage

Optionen

Exit on two sides instead of one
Exit extension through rubber flap 25cm
Stainless steel bottom and back
2-cylinder-clamp
4-cylinder-clamp
Saw clamp
3 point linkage for tractor (not possible at all widths, see table above)
