CCM-800

loader Für Kompaktlader
loader Für kleine Radlader
loader Für Teleskoplader
loader Für Traktor-Frontlader
loader Für Traktor-Hecklift
loader Für große Radlader
Min Ölfluss:
25 L/Min
Max Ölfluss:
60 L/Min
Max Druck:
175 Bar
Geeignet für:
Gülle Feststoffe, CCM
Anhängung:
Geschraubt

Horizontaler Futtermischer - 100% trockene Produkte (mittel)

The CCM mixing and distribution bucket is used to mix and distribute CCM, concentrated feed, etc.

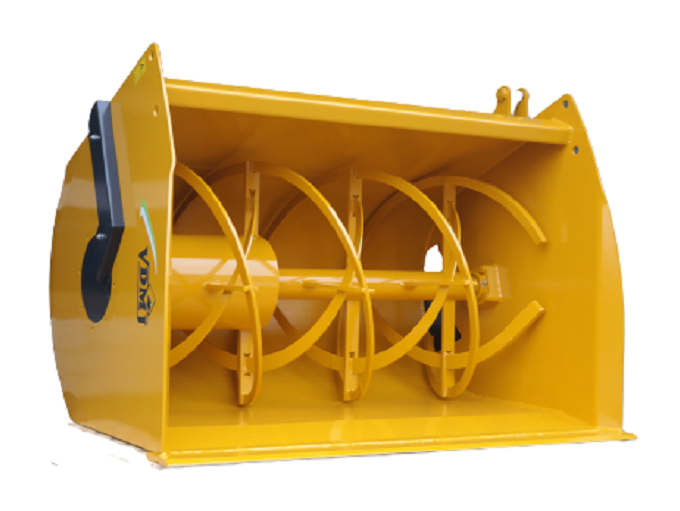

The mixing system of the bucket consists of a 800 mm diameter ribbon mixer with a counterflow ribbon. The drive of the mixer is provided by a heavy-duty planetary gearbox.

The operation of a standard bucket without options is done by plugging in 2 hydraulic quick couplings and a 12V plug. If the bucket is equipped with options, the operation will be done by means of a joystick box.

Standard

  • Used for mixing and distribution of CCM, concentrates, …
  • Sheet thicknesses 5 and 8mm
  • Driven by planetary gearbox and hydraulic motor

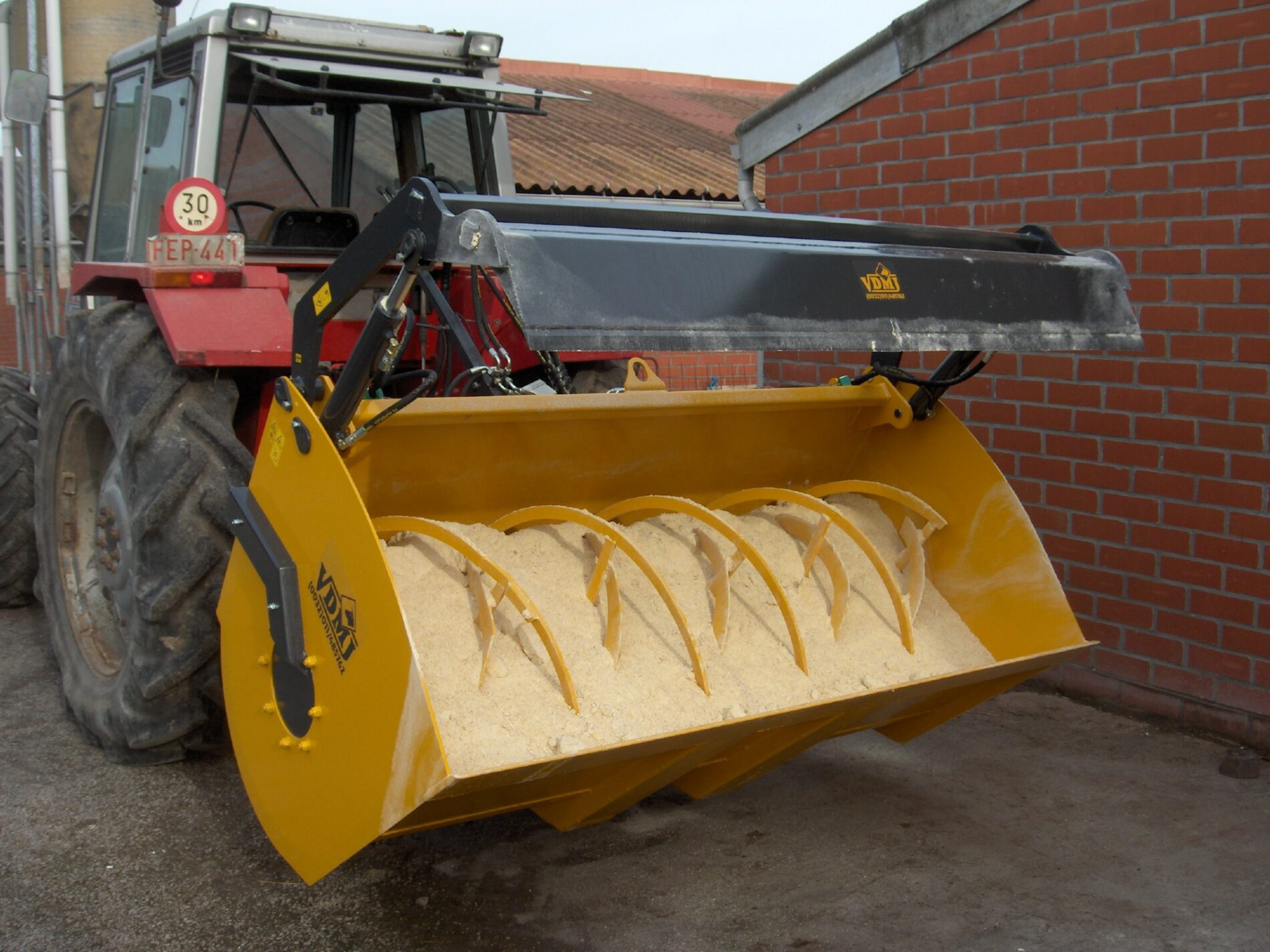

  • Auger Ø 800 mm, with counterflow ribbon

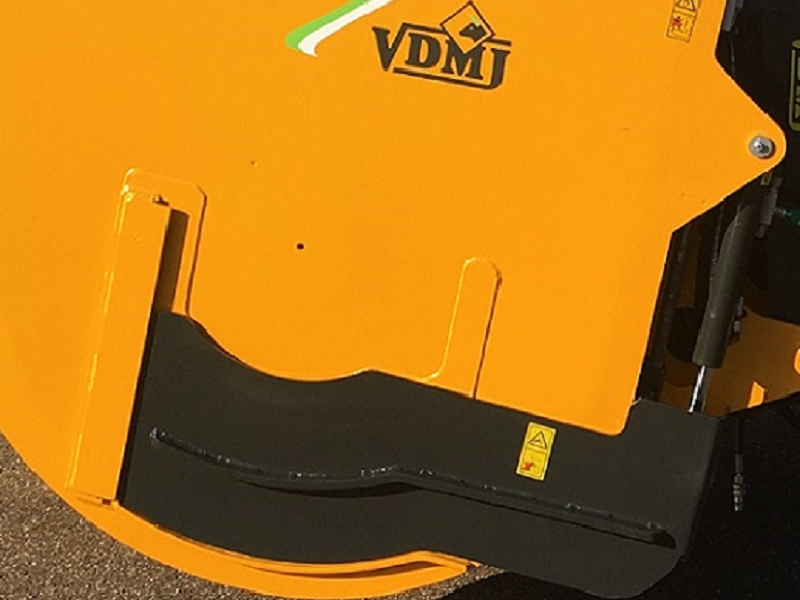

  • Exit left or right via hydraulic door
  • 2nd side unloading is an option

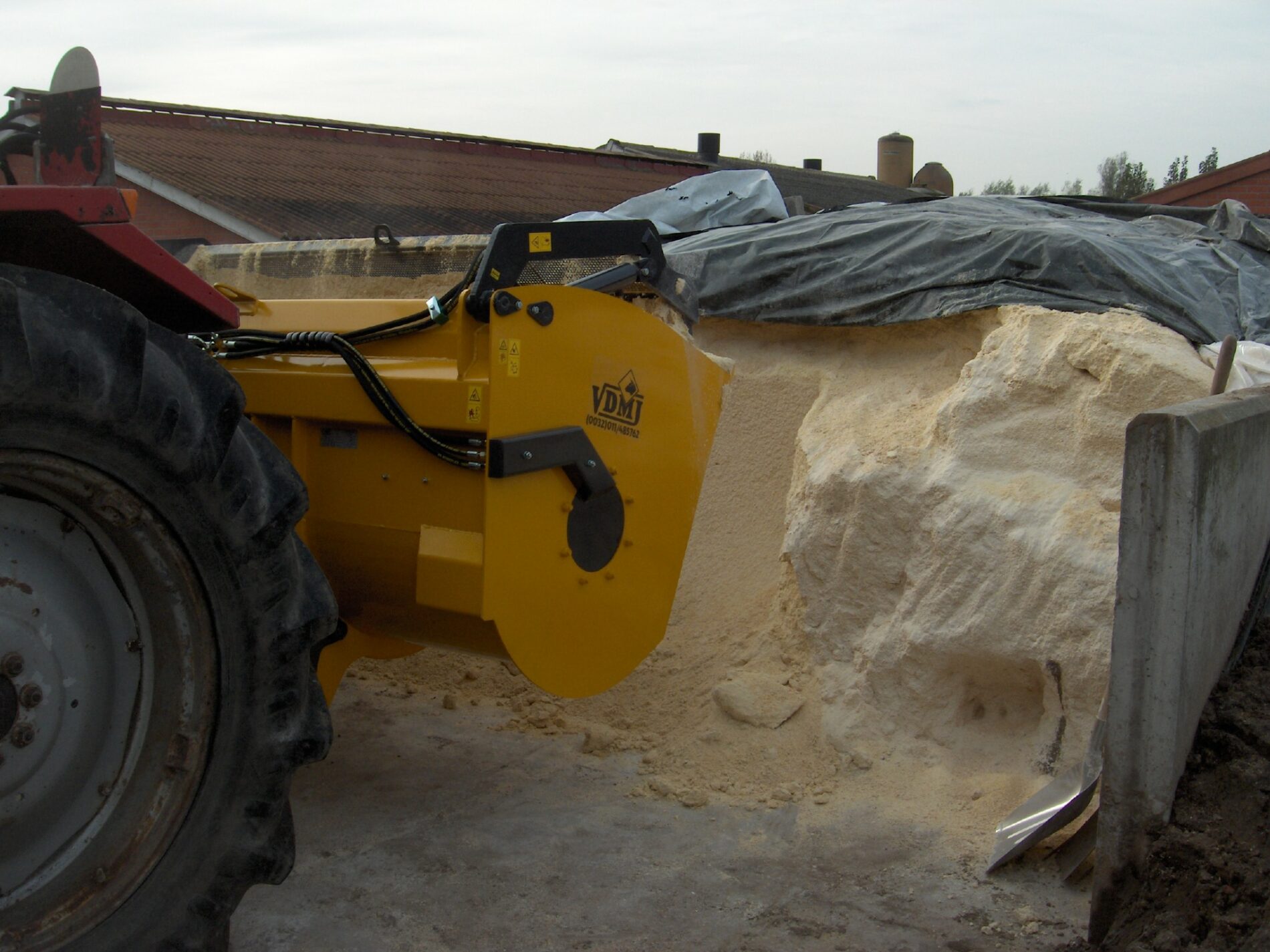

  • Widened shovel section especially for shovelling into a trench silo
  • Electro-hydraulic control (supplies: 1 double-acting valve + 12V connection)
CCM-800 / 1200 CCM-800 / 1400 CCM-800 / 1600 CCM-800 / 1800 CCM-800 / 2000 CCM-800 / 2100 CCM-800 / 2200 CCM-800 / 2400
Scoop width /m 1,20 1,40 1,60 1,80 2,00 2,10 2,20 2,40
Volume /m³ 0,86 1,00 1,18 1,35 1,51 1,60 1,67 1,84
Weight /kg 420 505 590 675 760 845 930 1015
Possible 3 point linkage for tractor? No No No No No No Yes Yes
Price (excl. VAT) Auf Anfrage Auf Anfrage Auf Anfrage Auf Anfrage Auf Anfrage Auf Anfrage Auf Anfrage Auf Anfrage

Optionen

Unload two sides instead of one
3 point linkage for tractor (not possible at all widths, see table above)
