AH-75
Für Kompaktlader
Für kleine Radlader
Für Teleskoplader
Für Traktor-Frontlader
Für große Radlader
Max Druck:
225 Bar
225 Bar
Geeignet für:
Stroh , Heu, Heulage, Gepresster Mais
Stroh , Heu, Heulage, Gepresster Mais
Anhängung:
Geschweißt
Geschweißt
Heavy Duty Rund- und Quaderballenzange

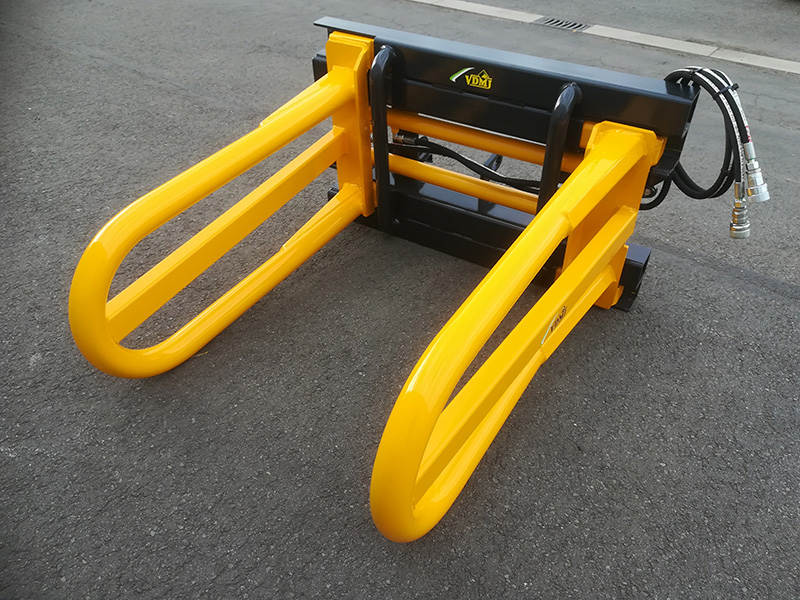

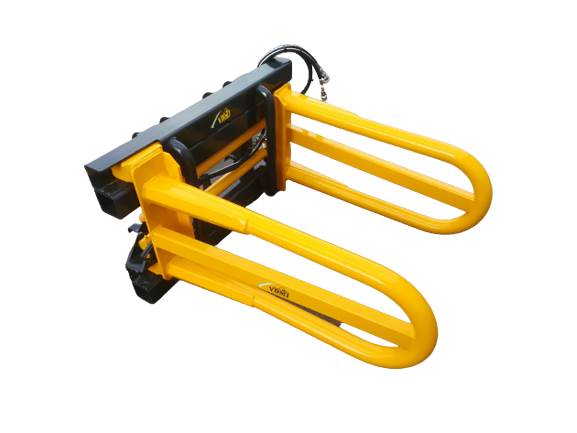

The AH-75 bale clamp is an extremely strong bale clamp typically used on (heavy) articulated loaders or front loaders. The brackets consist of thick-walled tubes with a diameter of 75 mm. On the sides of the brackets there are extra corners that provide more strength and an even longer life span. When the clamp is closed the opening will be 70cm, when the clamp is fully open the opening will be 2.10m. The load capacity of AH-75 is 1750kg. As an option the bale clamp can be fitted with a raised top section allowing two bales to be transported on top of each other.
Standard
| Clamping range closed /m | 0,70 |
| Clamping range open /m | 2,10 |
| Bracket diameter /mm | Ø 75 |
| Bracket dimension L x H /m | 1,10 x 0,50 |
| Overall width when closed /m | 1,15 |
| Capacity /kg | 1750 |
| Weight /kg | 350 |
| Price (excl. VAT) | Auf Anfrage |
Optionen
| Bolted loader brackets instead of welded | |
| Flow splitter for oil flow rate up to 100 l/min (for evenly opening the left and right bracket) | |
| Flow splitter for oil flow rate up to 150 l/min (for evenly opening the left and right bracket) | |
| Non-return valve (for loaders with open hydraulic centre position) | |
| Pressure relief valve (if 225 bar < P) | |

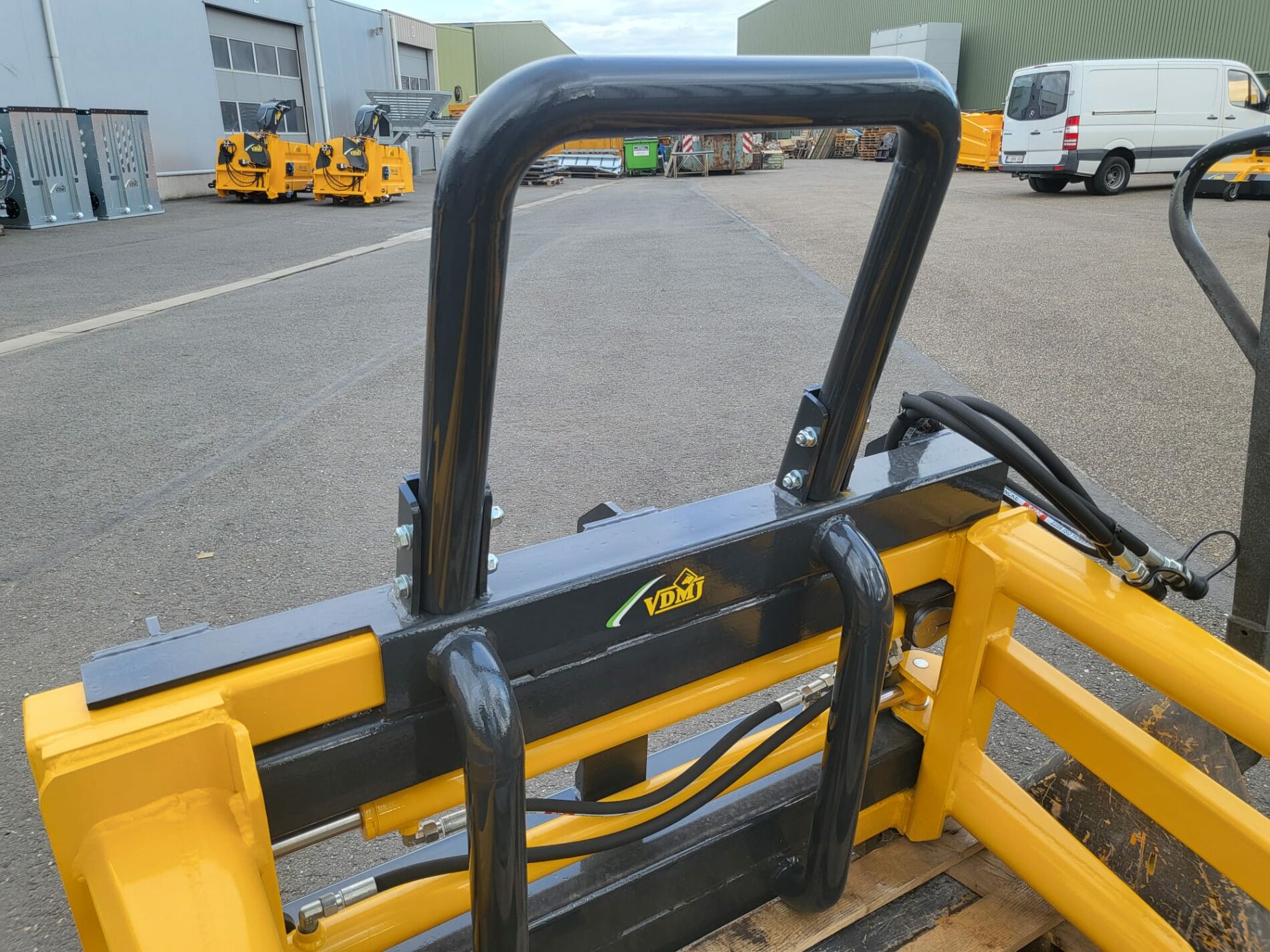

 | Raised top section to safely transport 2 bales |
