AH-60

loader Für Kompaktlader
loader Für kleine Radlader
loader Für Traktor-Frontlader
Max Druck:
200 Bar
Geeignet für:
Stroh , Heu, Heulage, Gepresster Mais
Anhängung:
Geschweißt

Rund- und Quaderballenzange

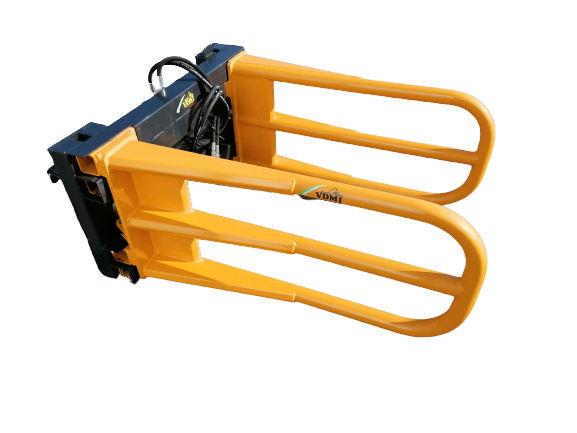

The AH-60 bale clamp is equipped with a bracket consisting of 3 tubes of diameter 60 mm. On the sides of the brackets there are extra corners that provide more strength and a longer life span. When the clamp is closed, the opening is 70cm, when the clamp is fully open the opening is 2.10m. The load capacity of the AH-60 is 1000kg.

Standard

Clamping range closed /m 0,70
Clamping range open /m 2,10
Bracket diameter /mm Ø 60
Bracket dimension L x H /m 1,18 x 0,56
Overall width when closed /m 1,10
Capacity /kg 1000
Weight /kg 300
Price (excl. VAT) Auf Anfrage

Optionen

Bolted loader brackets instead of welded
Flow splitter for oil flow rate up to 100 l/min (for evenly opening the left and right bracket)
Flow splitter for oil flow rate up to 150 l/min (for evenly opening the left and right bracket)
Non-return valve (for loaders with open hydraulic centre position)
Pressure relief valve (if 225 bar < P)
